This amp seemed to evolve more than any other Marshall in the 60's. I'll post several versions of the schematic.
Please note that there is not any one definitive '67 circuit or '68 circuit. Just typical values and eras.
george
1959 100 watt Superlead (several versions)
Moderator: VelvetGeorge
- VelvetGeorge
- Site Owner
- Posts: 7233
- Joined: Tue Oct 14, 2003 5:12 pm
- Just the numbers in order: 13492
- Location: The Murder Mitten
- Contact:
1959 100 watt Superlead (several versions)
- Attachments
-

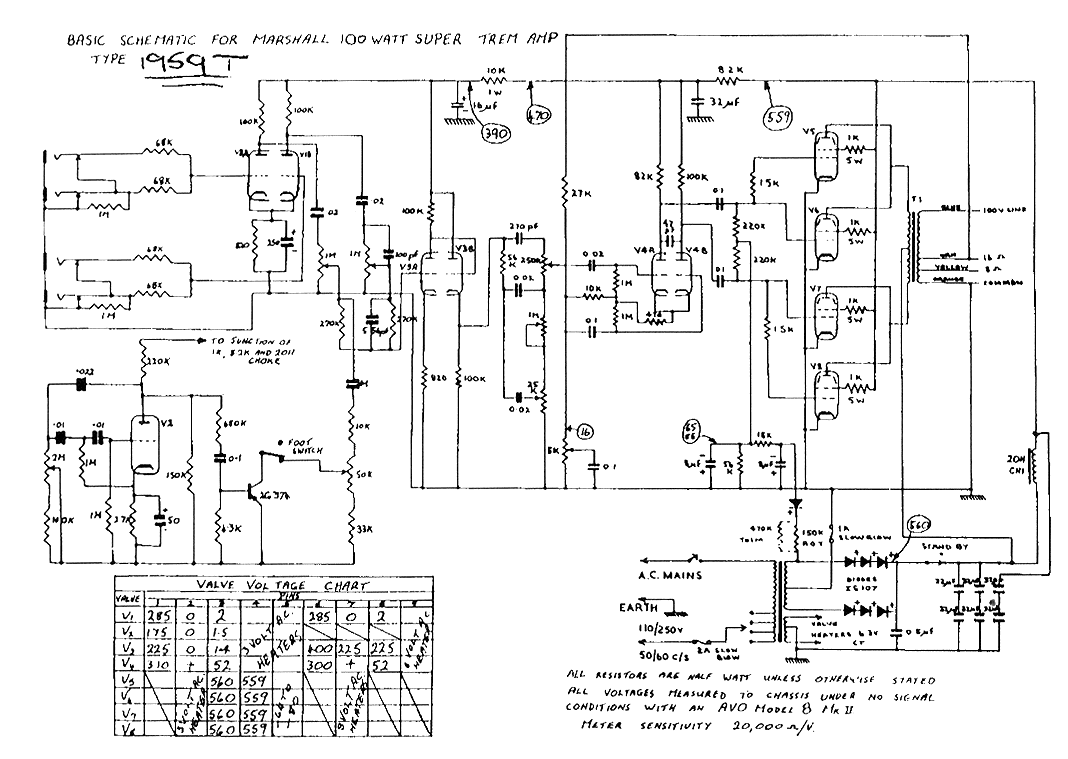

- 1959T_66.GIF (75.39 KiB) Viewed 13264 times
- VelvetGeorge
- Site Owner
- Posts: 7233
- Joined: Tue Oct 14, 2003 5:12 pm
- Just the numbers in order: 13492
- Location: The Murder Mitten
- Contact:
The ubiquitous July '70 schematic. This one seems pretty accurate for mid '69 and up.
VG
VG
- Attachments
-
- 1959 Schematic.pdf
- (264.17 KiB) Downloaded 4555 times
- VelvetGeorge
- Site Owner
- Posts: 7233
- Joined: Tue Oct 14, 2003 5:12 pm
- Just the numbers in order: 13492
- Location: The Murder Mitten
- Contact:
1204X
Thanks Mark!
VG
Thanks Mark!
VG
- Attachments
-
- SL1204X(1).pdf
- (175.95 KiB) Downloaded 2501 times
-
- SL1204X(2).pdf
- (204.44 KiB) Downloaded 2938 times
Last edited by VelvetGeorge on Thu Mar 22, 2007 1:11 pm, edited 1 time in total.
- VelvetGeorge
- Site Owner
- Posts: 7233
- Joined: Tue Oct 14, 2003 5:12 pm
- Just the numbers in order: 13492
- Location: The Murder Mitten
- Contact:
1231X
- Attachments
-
- SL1231X(1).pdf
- (172.33 KiB) Downloaded 2077 times
-
- SL1231X(2).pdf
- (198.72 KiB) Downloaded 2110 times
Last edited by VelvetGeorge on Thu Mar 22, 2007 1:11 pm, edited 1 time in total.
- VelvetGeorge
- Site Owner
- Posts: 7233
- Joined: Tue Oct 14, 2003 5:12 pm
- Just the numbers in order: 13492
- Location: The Murder Mitten
- Contact:
1022X 10 series
- Attachments
-
- SLa1022X(1).pdf
- (176.34 KiB) Downloaded 1777 times
-
- SLa1022X(2).pdf
- (204.24 KiB) Downloaded 1779 times
- VelvetGeorge
- Site Owner
- Posts: 7233
- Joined: Tue Oct 14, 2003 5:12 pm
- Just the numbers in order: 13492
- Location: The Murder Mitten
- Contact:
1230X
- Attachments
-
- SL1230X(2).pdf
- (200.94 KiB) Downloaded 1926 times
-
- SL1230X(1).pdf
- (176.73 KiB) Downloaded 2196 times
- VelvetGeorge
- Site Owner
- Posts: 7233
- Joined: Tue Oct 14, 2003 5:12 pm
- Just the numbers in order: 13492
- Location: The Murder Mitten
- Contact:
1043X
- Attachments
-
- SLa1043X(2).pdf
- (206.09 KiB) Downloaded 1795 times
-
- SLa1043X(1).pdf
- (176.27 KiB) Downloaded 1897 times
