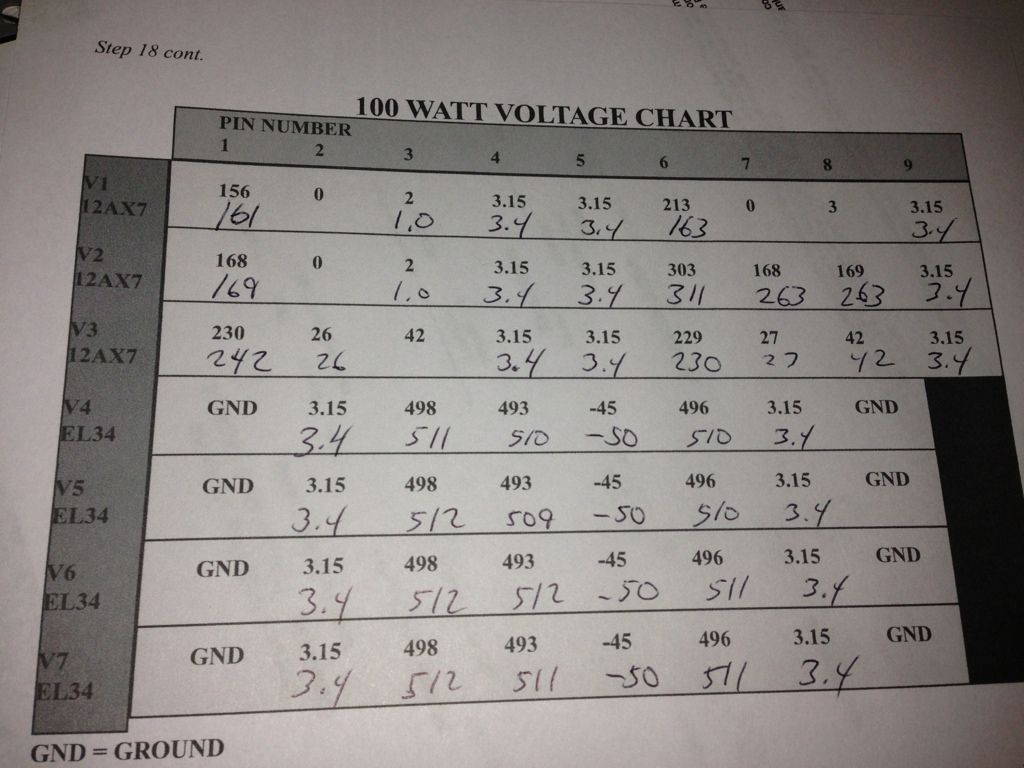

Hey guys just got done building my new plexi and got a couple of odd voltage readings when checking the amp!!on v1 pin 6 only getting 163....and on v2 getting 263 on pin 7 and 8??thats kind of far off on voltage chart!! I'm posting pic of the voltage chart with all my readings written in!!i also not getting any sounds from the amp!thabks for the help...
Here is link to my voltage..
http://i1237.photobucket.com/albums/ff4 ... 17DB62.jpg" onclick="window.open(this.href);return false;
Got my new plexi together , no sound and voltage issue?
-
bmf5150
- Senior Member
- Posts: 4046
- Joined: Sat Oct 18, 2003 4:41 pm
Got my new plexi together , no sound and voltage issue?
R.I.P My precious daughter Aubrey Marie May 20th to May 23rd 2006,we love and miss you!
My EVH sound clips.
http://soundclick.com/share?songid=7782093" onclick="window.open(this.href);return false;
My EVH sound clips.
http://soundclick.com/share?songid=7782093" onclick="window.open(this.href);return false;
-
axeman
- Senior Member
- Posts: 2465
- Joined: Wed Apr 02, 2008 1:21 pm
- Just the numbers in order: 7
- Location: Los Angeles
- Contact:
Re: Got my new plexi together , no sound and voltage issue?
Post some Gut shots
-
YMI5150?
- Senior Member
- Posts: 983
- Joined: Tue Feb 02, 2010 3:38 pm
- Just the numbers in order: 13492
- Location: Nevada City, CA
- Contact:
Re: Got my new plexi together , no sound and voltage issue?
Include the input jack wiring. With these shots.axeman wrote:Post some Gut shots
-
bmf5150
- Senior Member
- Posts: 4046
- Joined: Sat Oct 18, 2003 4:41 pm
Re: Got my new plexi together , no sound and voltage issue?
thanks for the help guys,has to be something im missimg,i went over wire again,tried different tubes.
here is picture links
http://s1237.beta.photobucket.com/user/ ... my%20plexi" onclick="window.open(this.href);return false;
here is picture links
http://s1237.beta.photobucket.com/user/ ... my%20plexi" onclick="window.open(this.href);return false;
R.I.P My precious daughter Aubrey Marie May 20th to May 23rd 2006,we love and miss you!
My EVH sound clips.
http://soundclick.com/share?songid=7782093" onclick="window.open(this.href);return false;
My EVH sound clips.
http://soundclick.com/share?songid=7782093" onclick="window.open(this.href);return false;
-
neikeel
- Senior Member
- Posts: 7231
- Joined: Tue Dec 06, 2005 8:31 am
- Location: Suffolk, England
Re: Got my new plexi together , no sound and voltage issue?
Your voltage readings are not way off but V2 does seem a bit high on the grid of the cathode follower.
I would check over your tone stack wiring and particluarly the mica cap. Then follow the comnnections out of the tone stack through the two coupling caps to the pots. Are the voltage readings on pin 7 and pin 8 of V2 variable depending on where the pots are set on the treble/mids and bass?
Confess I cannot see any wiring mistakes either.......................
I would check over your tone stack wiring and particluarly the mica cap. Then follow the comnnections out of the tone stack through the two coupling caps to the pots. Are the voltage readings on pin 7 and pin 8 of V2 variable depending on where the pots are set on the treble/mids and bass?
Confess I cannot see any wiring mistakes either.......................
Neil
-
bmf5150
- Senior Member
- Posts: 4046
- Joined: Sat Oct 18, 2003 4:41 pm
Re: Got my new plexi together , no sound and voltage issue?
I'll have to check those voltages when I change the pot settings
R.I.P My precious daughter Aubrey Marie May 20th to May 23rd 2006,we love and miss you!
My EVH sound clips.
http://soundclick.com/share?songid=7782093" onclick="window.open(this.href);return false;
My EVH sound clips.
http://soundclick.com/share?songid=7782093" onclick="window.open(this.href);return false;
-
bmf5150
- Senior Member
- Posts: 4046
- Joined: Sat Oct 18, 2003 4:41 pm
Re: Got my new plexi together , no sound and voltage issue?
Ok on v2 pin 7 and 8 there are no changes to voltage when treble ,mids or bass are moved.....
R.I.P My precious daughter Aubrey Marie May 20th to May 23rd 2006,we love and miss you!
My EVH sound clips.
http://soundclick.com/share?songid=7782093" onclick="window.open(this.href);return false;
My EVH sound clips.
http://soundclick.com/share?songid=7782093" onclick="window.open(this.href);return false;
-
bmf5150
- Senior Member
- Posts: 4046
- Joined: Sat Oct 18, 2003 4:41 pm
Re: Got my new plexi together , no sound and voltage issue?
I set my volt ohm meter to test (where it beeps if touch two leads together ) and tested my grounds, all seem to be good!is there a wire off of treble pot that I can lift off and send a line level from another amp to by pass preamp of plexi to try and locate if problem is in power amp side or preamp???
R.I.P My precious daughter Aubrey Marie May 20th to May 23rd 2006,we love and miss you!
My EVH sound clips.
http://soundclick.com/share?songid=7782093" onclick="window.open(this.href);return false;
My EVH sound clips.
http://soundclick.com/share?songid=7782093" onclick="window.open(this.href);return false;
-
Reeltarded
- Senior Member
- Posts: 512
- Joined: Sat Aug 20, 2011 4:24 am
- Just the numbers in order: 7
Re: Got my new plexi together , no sound and voltage issue?
Yes youmcan wire a jack off the output of the treble and send that to another amp and wire a jack off the input of the PI and use that as a return for another preamp. You can drill holes and wire those together in suach a way that you make the simple effects loop since you are half way at that point.
